Dual-Row Cold Air Duct

Dual-Row Cold Air Duct is an airflow design used in equipment cooling or air-cooling systems. Its key feature is the use of two parallel rows of cold air channels to deliver cool air, thereby improving heat dissipation efficiency and airflow uniformity. This structure is commonly used in temperature control systems for data centers, electronic equipment cabinets, industrial equipment, or precision machinery.

What is a Dual-Row Cold Air Duct?

A Dual-Row Cold Air Duct refers to the arrangement of two independent or parallel cold air channels within the same cooling system. This allows cool air to enter the equipment area from multiple directions or at multiple levels, achieving a more efficient heat dissipation effect.

Simply put: Single-Row Cold Air Duct: A single row of cold air channels. Dual-Row Cold Air Duct: Two rows of cold air channels. The dual-row structure provides greater airflow, more uniform airflow, and more stable temperature control.

How Does a Dual-Row Cold Air Duct Work?

The working principle of a Dual-Row Cold Air Duct is based on controlled airflow distribution. The system typically operates through the following process:

Cold Air Generation

Cooling equipment such as air conditioning units or industrial cooling systems produces cold air.

Air Distribution Through Dual Channels

The cold air is delivered through two parallel air ducts, allowing the airflow to reach multiple points simultaneously.

Even Airflow Delivery

Multiple air outlets along the duct distribute the cold air evenly to equipment or specific zones.

Heat Removal

The heated air generated by equipment is expelled through separate exhaust systems, maintaining optimal operating temperatures.

This dual-channel design helps prevent hot spots and ensures stable temperature control in high-performance environments.

Key Structural Features

A typical Dual-Row Cold Air Duct system includes several important structural components:

Dual parallel airflow channels

Cold air inlet ports

Air distribution outlets or vents

Adjustable airflow control mechanisms

Insulated or sealed duct structures

Common manufacturing materials include:

Galvanized steel

Aluminum alloy

Stainless steel

Engineering plastics

These materials provide durability, corrosion resistance, and efficient airflow management.

The difference between Dual-Row Cold Air Duct and Single-Row Cold Air Duct

Product Advantages

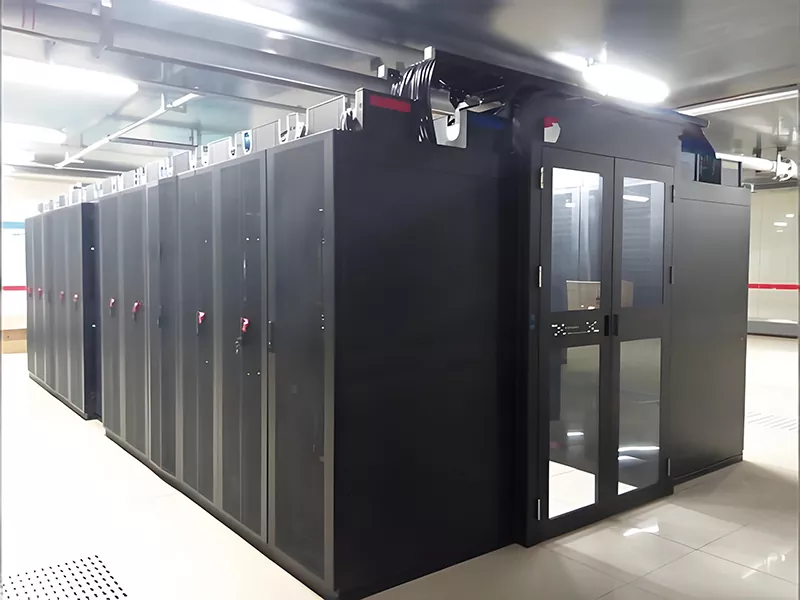

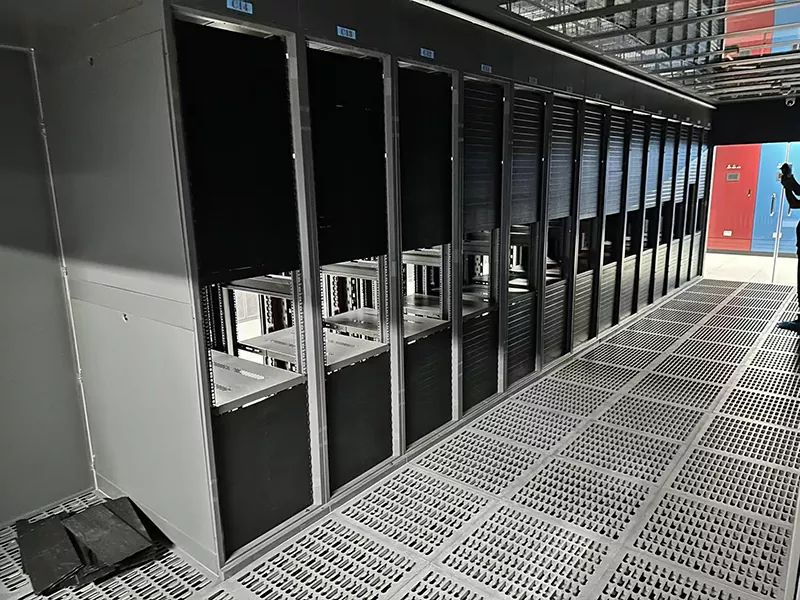

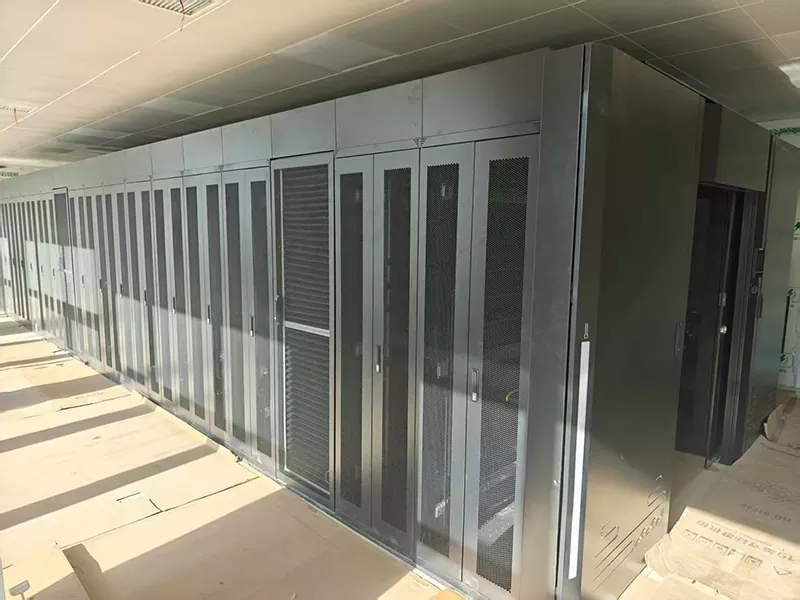

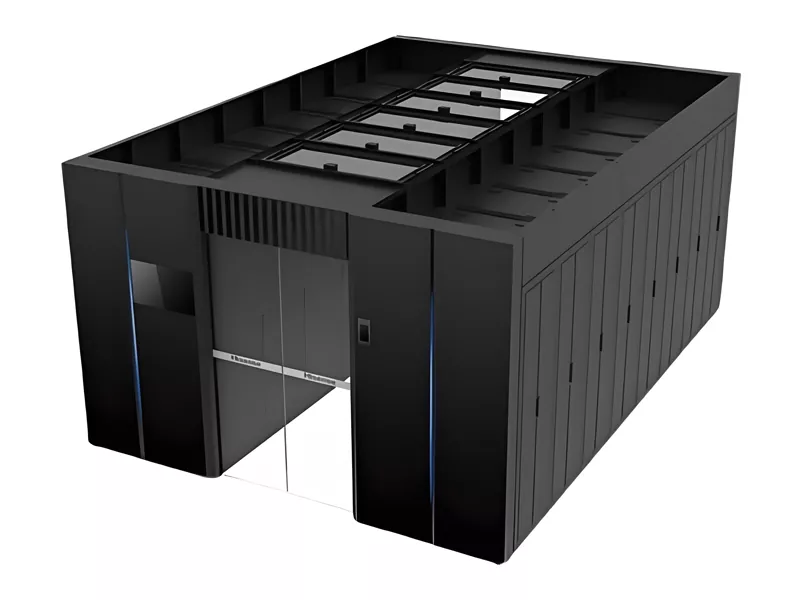

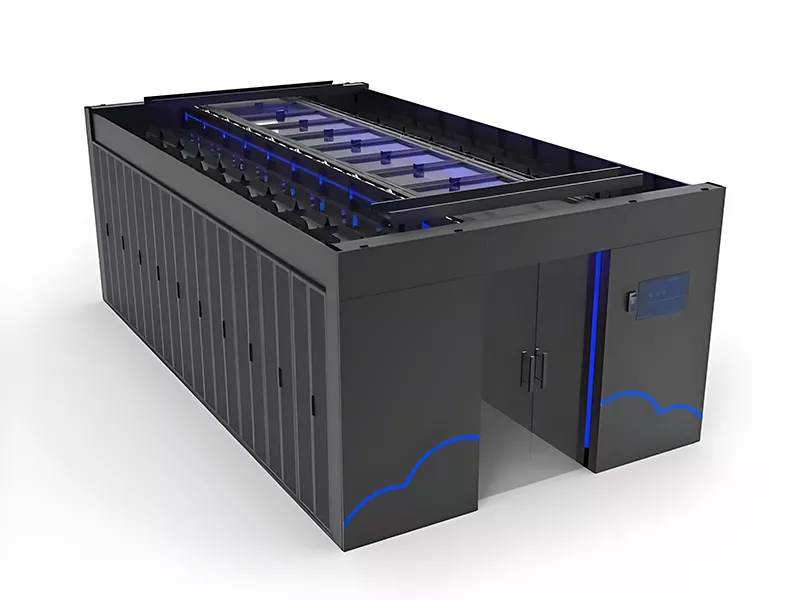

Temei Rui, a reliable China manufacturer, offers its own factory-direct supply of double-row cold aisle cabinets, making it the preferred supplier for enterprises procuring high-density data center equipment. Based on twenty years of manufacturing experience, we focus on the core needs of large data centers, creating double-row cold aisle cabinets that combine energy efficiency, scalability, and stability. We use quality and service to reduce operating costs and improve data center efficiency for our customers.

1. High-density layout, maximizing space utilization.

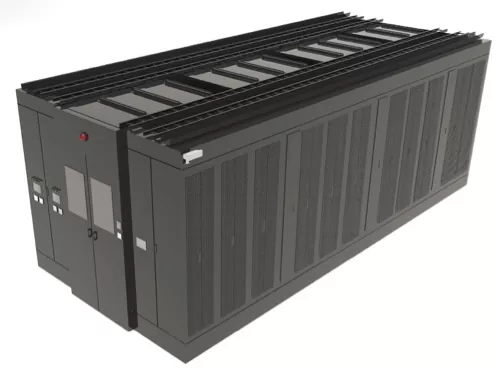

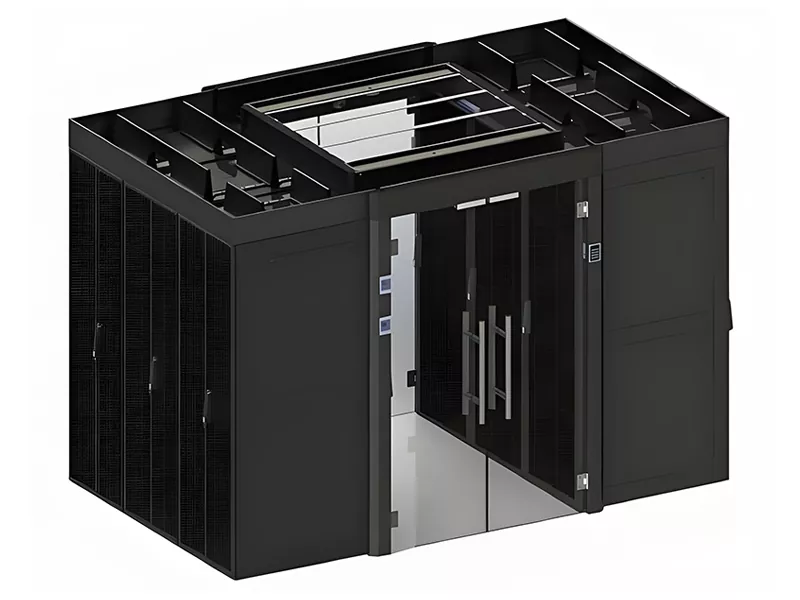

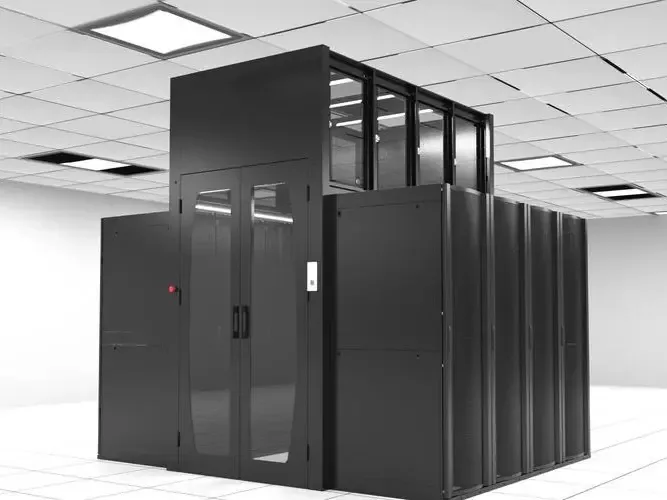

Our dual-row cold aisle rack features a symmetrical dual-row design, allowing for 50% more equipment deployment within the same footprint compared to single-row racks. This makes it particularly suitable for the high-density equipment needs of large data centers. Key parameters are as follows:

Moreover, the rack structure is sturdy and has a strong load-bearing capacity, so there is no need to worry about structural deformation caused by too many devices, thus improving the utilization rate of the data center space from the root.

2. Intelligent Energy Saving, More Precise Temperature Control

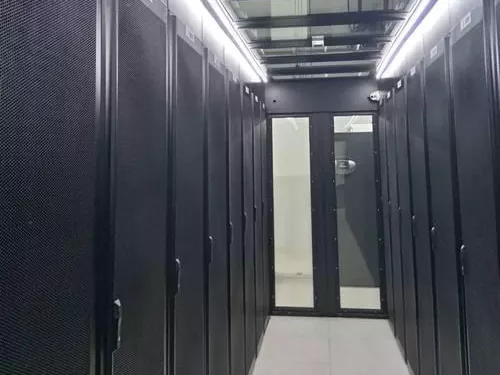

Many customers worry about the difficulty of temperature control and high energy consumption in large data centers. Our double-row cold aisle rack specifically addresses this issue. The fully sealed aisle design effectively locks in cold air, preventing leakage. Combined with an intelligent cooling system, it automatically adjusts fan speed based on equipment heat output, increasing cooling utilization by over 40% compared to ordinary racks. Protection ratings range from IP30 to IP65, ensuring precise temperature control in both indoor and outdoor data centers. This guarantees stable operation of equipment in a constant temperature environment while significantly reducing air conditioning energy consumption, resulting in substantial long-term electricity savings.

3. Flexible Expansion, Easier Maintenance

Considering the expansion needs of large data centers, our double-row cold aisle rack supports modular expansion. Adding new equipment later requires no changes to the overall layout; simply expand the rack units. Internally integrated with layered cable management racks and concealed cable trays, the network and power cables of the double-row equipment are organized and tidied, preventing tangled cables. During maintenance, the corresponding cables are easily identifiable, greatly saving maintenance time. Furthermore, the electrostatic powder coating process on the rack surface requires only simple wiping for daily cleaning, reducing maintenance labor costs and making data center management more efficient.

4. Factory Direct Supply, Guaranteed Quality

We manufacture in our own factory. As a professional manufacturer, we eliminate middlemen, ensuring more competitive pricing for you. Every double-row cold aisle rack undergoes a dual process of pickling and phosphating followed by electrostatic powder coating. It is ISO9001 and CE certified, guaranteeing quality and a lifespan exceeding 10 years. We also provide one-stop service, from initial solution design and manufacturing to on-site installation and commissioning, and finally to a 10-year warranty and regular inspections. We provide comprehensive support throughout the entire process, giving you peace of mind when purchasing and using our equipment, completely eliminating any worries.

Applications

Dual-row cold air duct systems are commonly used in the following applications:

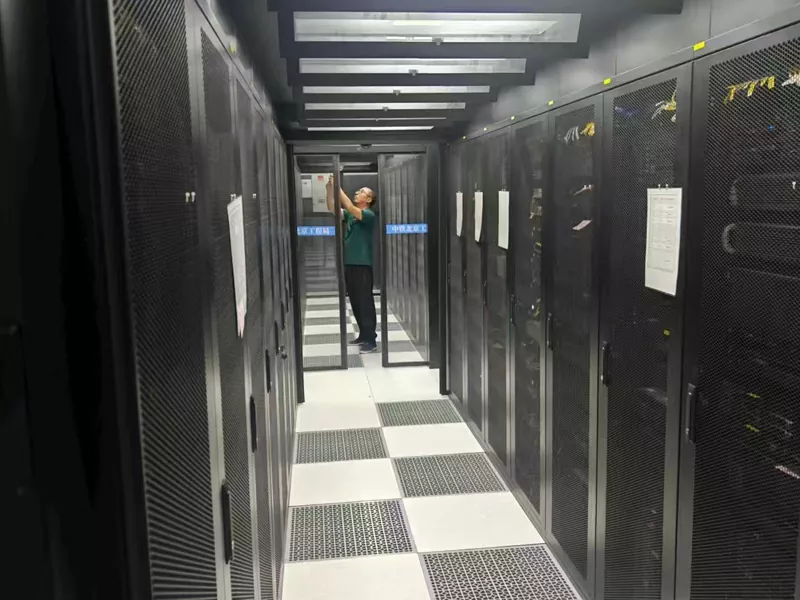

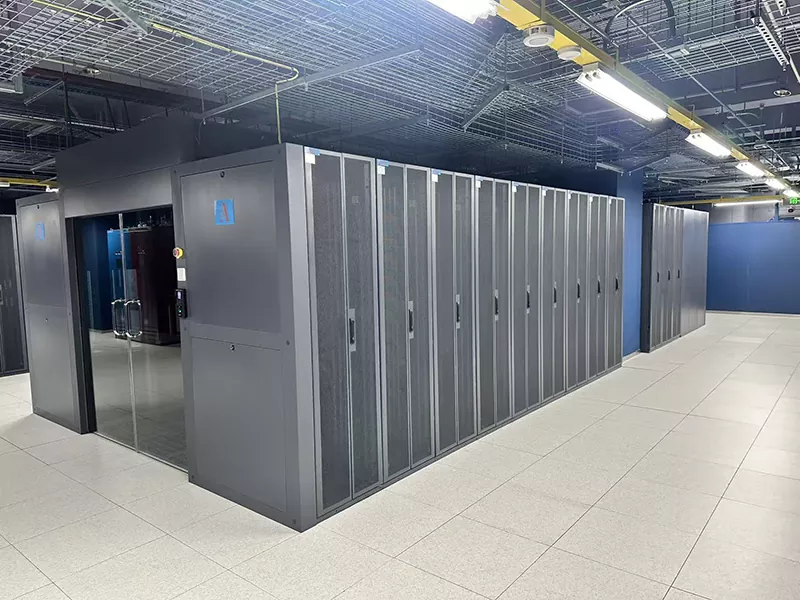

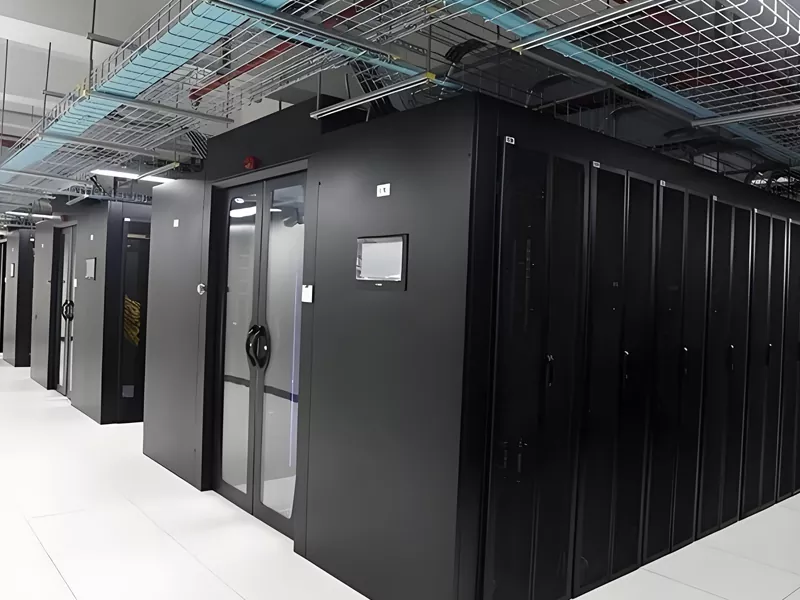

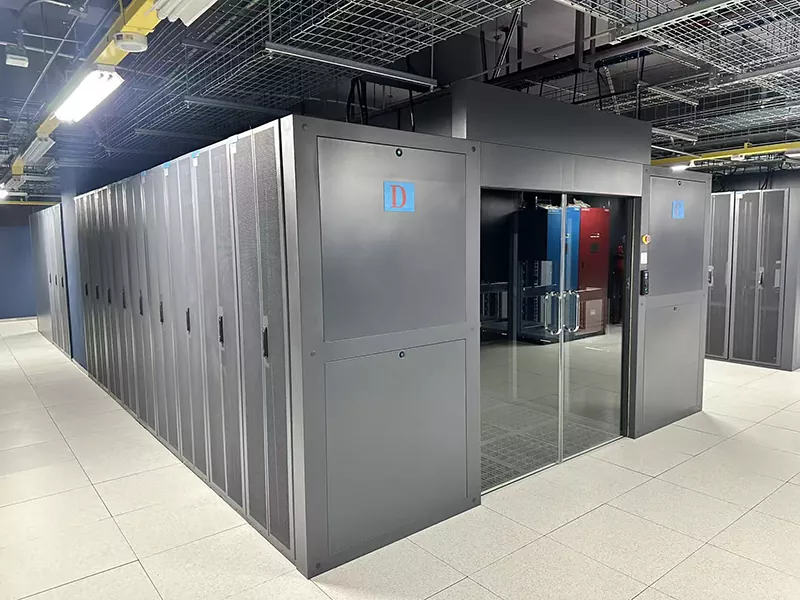

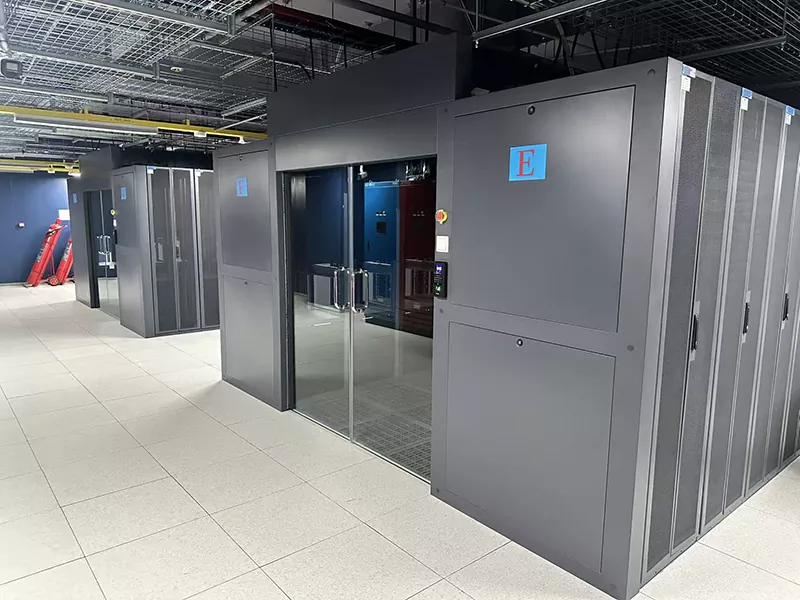

Data center cooling systems

Server cabinet airflow management

Industrial automation equipment

Communication base station equipment

Precision electronics cooling systems

High-performance machinery temperature control

Why Choose Temei Rui?

Tianjin Temei Rui Global Trade Co., Ltd. is a professional manufacturer and factory direct supplier of double-row cold aisle server racks. With its own 10,000㎡ production base and a full set of CNC machining equipment, it can customize double-row cold aisle racks to meet the needs of different data centers. The products use high-quality cold-rolled steel as the base material, treated with pickling and phosphating and electrostatic powder coating processes, resulting in excellent anti-static and anti-corrosion performance, strong structural load-bearing capacity, and a service life exceeding 10 years. Adopting a fully sealed double-row aisle design, coupled with an intelligent temperature control and heat dissipation system, the cooling capacity utilization rate is increased by 40% compared to single-row racks. Protection levels cover IP30-IP65, suitable for various indoor and outdoor data center scenarios. Internally equipped with layered cable management racks and adjustable mounting beams, it supports high-density equipment deployment and flexible expansion. Certified by ISO9001 and CE, it balances ease of maintenance with stable quality.

FAQ

1.What services does Temei Rui offer for double-row cold aisle racks?

As a professional factory and supplier, Temei Rui provides full-cycle, one-stop service for double-row cold aisle rack customers. In the initial stage, a professional team conducts on-site surveys, customizing a double-row layout solution based on data center size, equipment quantity, expansion needs, and temperature control standards. During the production stage, precision machining using CNC equipment is employed, with full visual management and quality inspection at each stage to ensure compliance with dual certification standards. After delivery, professional on-site installation and commissioning services are provided, along with simultaneous integration with the air conditioning system and maintenance training. After-sales service includes a dedicated team, a 10-year warranty, regular on-site inspections of aisle sealing, heat dissipation systems, and structural stability, 24-hour response to fault repair requests, and support for future expansion and upgrade services, comprehensively solving customers' procurement, usage, and maintenance challenges.

2. Why is a Dual-Row Cold Air Duct more efficient?

Because it distributes airflow through two channels, it increases air circulation and reduces the risk of localized overheating.

3. Where is a Dual-Row Cold Air Duct typically installed?

It is commonly installed in data centers, industrial equipment cabinets, server rooms, and electronic cooling systems.

4. What materials are commonly used to manufacture Dual-Row Cold Air Ducts?

Common materials include galvanized steel, aluminum alloy, stainless steel, and high-strength engineering plastics, depending on the application environment.

5. Can Dual-Row Cold Air Duct systems reduce equipment failure?

Yes. By maintaining stable operating temperatures and preventing overheating, these systems help improve equipment reliability and lifespan.

6. Is a Dual-Row Cold Air Duct suitable for high-power equipment?

Yes. Dual-row airflow structures are particularly suitable for high-density or high-power equipment where strong and stable cooling performance is required.
